Model:- concept_model
PLCS Concept Model

The PLCS Concept Model is a high level model of the main concepts used in ISO 10303-239. It is intended to be used to introduce on a single page the scope that PLCS addresses. The model uses UML syntax.

NOTE    While the concept model does show the majority of key concepts, it does not show many relationships. Some concepts, such as Classification and Date_time, apply to so many aspects that they are left unattached at the bottom of the model.

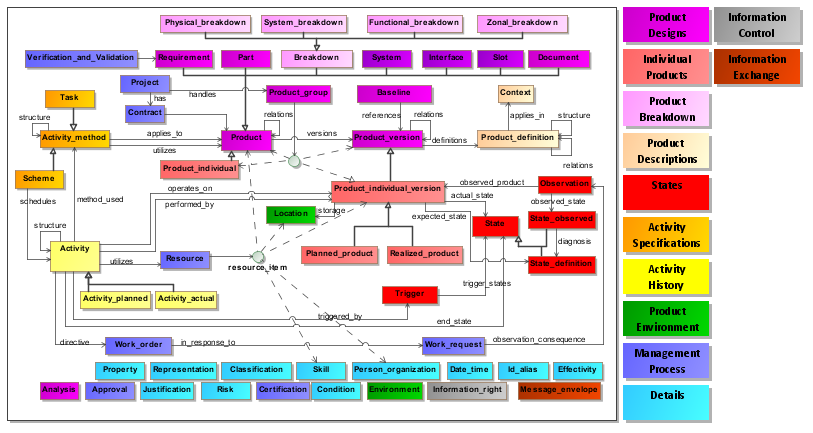

Clicking on the image below will display a large image of the model in which each SysML Block is hyperlinked to its definition which will be displayed in the lower pane.

./images/Content_Diagram__PLCSConceptModel__Concept_model_overview.png

NOTE    The colours group related concepts. In some cases these are closely related, in other cases less so.
NOTE    Use of a full screen view is recommended. In most browsers (on PCs) this is achieved by using the F11 key.
