Template: OASIS:Fleet

This section specifies the template Fleet.

The specification comprises a SysML Block that represents the template and an associated Parametric Diagram that defines the templates and PLCS PSMTemplate objects instantiated by the Fleet template.

The specification comprises the following sections:

NOTE    An explanation of a template and its specification is provided in the Template overview

The Fleet template describes how to represent a collection of items (in general product) grouped together for a given purpose.

The SysML Block Definition diagram in Figure 1 shows how a activity is represented in the PLCS PSM.

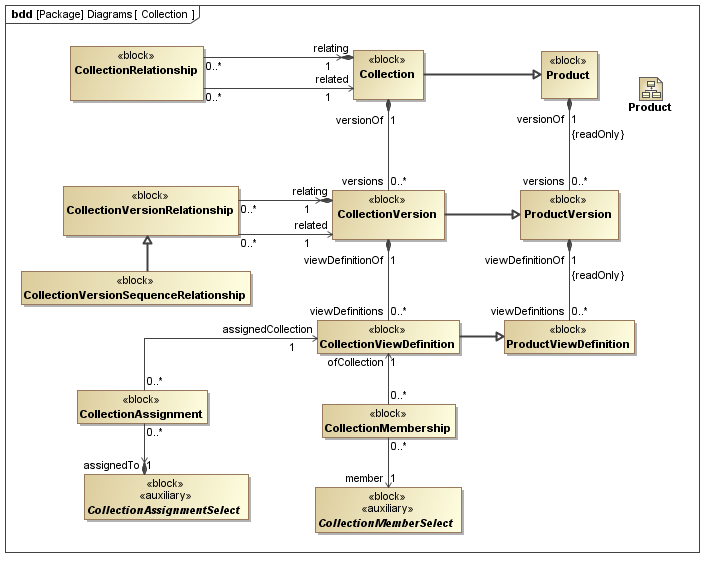

Figure 1 -  Collection model

No templates have been explicitly defined as being related to the Fleet template.

NOTE    The Fleet template may make reference to other templates as part of the Parametric Diagram. These are not listed here.

Figure 2 shows the SysML Block that represents the template. The Block is an abstraction representing a pattern of templates and PLCS PSMTemplate objects.

The properties, i.e. the SysML Block Part, Reference and Value properties, of the template's SysML Block are described in the Template Properties section.

The output ports shown on the template's SysML Block are described in the template output ports section.

The constraints shown on the template's SysML Block are described in the template constraints section.

The SysML Parametric diagrams for the template Block are shown in template parametric diagram section.

Figure 2 -  Template block definition diagram for Fleet

The following SysML Part, Reference, and Value properties are defined for this template:

References:
Parts:
ids [1..*] (Template: OASIS:Identification)
The collection of identification of the Fleet (Collection)
The reference data used in Template: OASIS:Identification is restricted as follows:
RDL constraint 1:
There must be one identifier that identifies the Collection.
The reference data for:
OASIS:Identification.role -> ExternalOwlClass.class
is restricted to the following class or a subclass:
names [0..*] (Template: OASIS:Name)
The collection of names of the Fleet (Collection)
descriptions [0..*] (Template: OASIS:Descriptor)
The collection of descriptions of the Fleet (Collection)
versionId [1] (Template: OASIS:Identification)
The version identification of the Fleet (CollectionVersion)
The reference data used in Template: OASIS:Identification is restricted as follows:
RDL constraint 1:
The identifier must be a version identifier.
The reference data for:
OASIS:Identification.role -> ExternalOwlClass.class
is restricted to the following class or a subclass:
classifications [1..*] (Template: OASIS:Classifier)
The collection of classifications for the Fleet (Collection)
The reference data used in Template: OASIS:Classifier is restricted as follows:
RDL constraint 1:
The reference data for:
OASIS:Classifier.class -> ExternalOwlClass.class
is restricted to classes that are subclasses of the following class:

The following output ports are defined for this template:

fleet (Block: Ap239Ap233Psm:Collection)
Enables the Block: Ap239Ap233Psm:Collection instantiated by this template to be referenced when the template is used.
fleet_vn (Block: Ap239Ap233Psm:CollectionVersion)
Enables the Block: Ap239Ap233Psm:CollectionVersion instantiated by this template to be referenced when the template is used.
fleet_view (Block: Ap239Ap233Psm:CollectionViewDefinition)
Enables the Block: Ap239Ap233Psm:CollectionViewDefinition instantiated by this template to be referenced when the template is used.

The following constraints are defined for this template:

Constraint: classifRules
Specification: (English)
Classifications are restricted to or subclasses of http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Fleet
Constraint: idsRules
Specification: (English)
There must be one identifier type restricted to or a subclass of http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Fleet_identification_code

This section describes the template's Parametric Diagram. The diagram details the pattern of templates and PLCS PSMTemplate objects that are required to represent the template Fleet.

The public properties, i.e. those visible in the template's SysML block (See Figure 2) are shown on the left of a Parametric Diagram.

NOTE    Restrictions on the reference data to be set on the public properties is defined in the Template Properties section.

The output ports are shown on the right of a Parametric Diagram.

PLCS PSM objects are shaded khaki and Templates are shaded light green in a Parametric Diagram.

Figure 3 -  Parametric diagram for Fleet

The following blocks are instantiated by this template and bound to private parts of the template as shown in the Parametric Diagram section:

Private Part Property:collect [1] (Template: OASIS:Collection)

Figure 3 shows the instances that have been instantiated in the template. These are used to set the default value of blocks.

Instance diagram
Figure 3 -  Model instance diagram for Fleet

The following instances have been created:

There are no constraint blocks defined in this template.

No example data sets have been provided for this Template.
