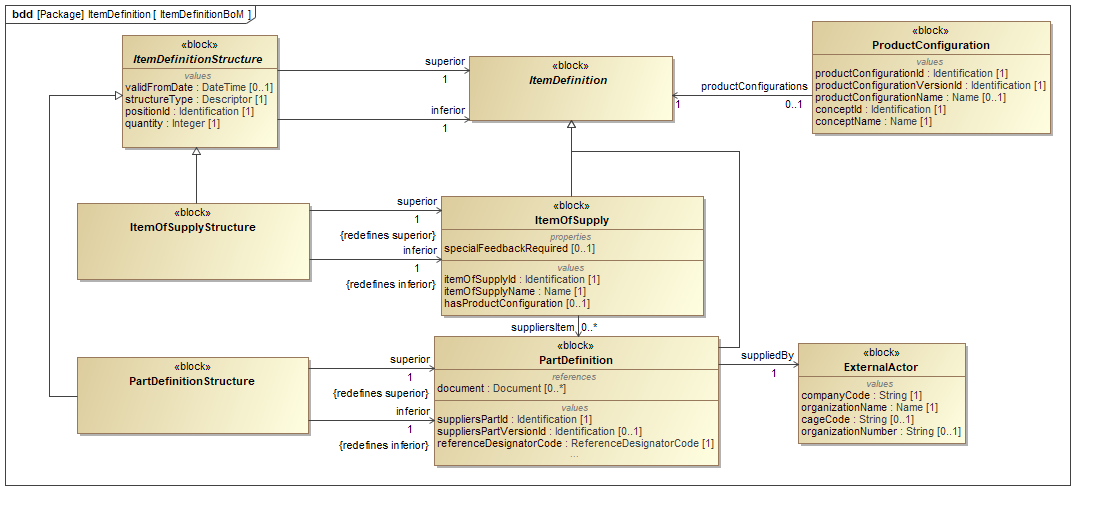

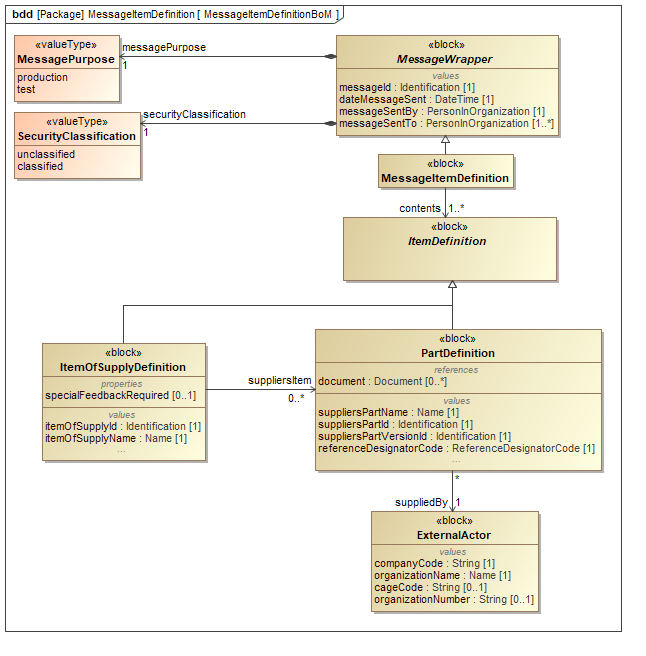

The ItemDefinition: Business overview section provided a high level overview of the business information that can be represented by this DEX. This section provides a more detailed overview of that information. A description of how to represent this information using ISO 10303-239 PLCS is provided in ItemDefinition: PLCS PSM Representation.
The section describes the different classes used for Exchange according to this DEX.
ExternalActor
The ExternalActor template describes how to represent a third-party organization.
|
Attribute |
Description |
|---|---|
| cageCode | Commercial and Government Entity Code, the NATO correspondence to Swedish Company Letter-codes. Cage codes should be used from 2008. CAGE-kod motsvarande NMCRL:s NCAGE-kod, utvisande leverantörskod, använt i NATO-CD NMCRL för kodifiering av leverantörer och referenser till materieldata lagrade för dessa leverantörer. Termbet. CAGEKOD, Termnr. 713. |
| companyCode | Identification owned by the Swedish Defence for an organization that has delivered drawings or parts to the Swedish Defence. Referens till vilket ritningsnummersystem (vilken FBKOD) som aktuell firmas förnödenhetsdata skall registreras under. Omfattar pos 1-5 i Referensbeteckningsfältet (= Ursprungsbeteckning, Alternativ beteckning). Termbet. FBKOD, Termnr. 700 |
| organizationName | The name of the delivering organization. Oförkortat namn på aktuell firma. Termbet. FANAMN, Termnr. 709. |
| organizationNumber | The identifying number for the delivering organization. |
ItemOfSupplyDefinitionStructure
The ItemOfSupplyDefinitionStructure template describes how to represent the composition of a ItemOfSupply.
|
Attribute |
Description |
|---|---|
| inferior | Relationship to a subordinate in the item of supply structure. |
| structurePositionId | Identifier of the position in the item definition structure. |
| structureQuantity | Number of units for a particular item in next higher assembly. |
| structureType | Type of the item definition structure. |
| structureValidFromDate | Start date that the item definition structure is valid. |
| superior | Relationship to a superior in the item of supply structure. |
Table 3 -ItemOfSupplyDefinitionStructure

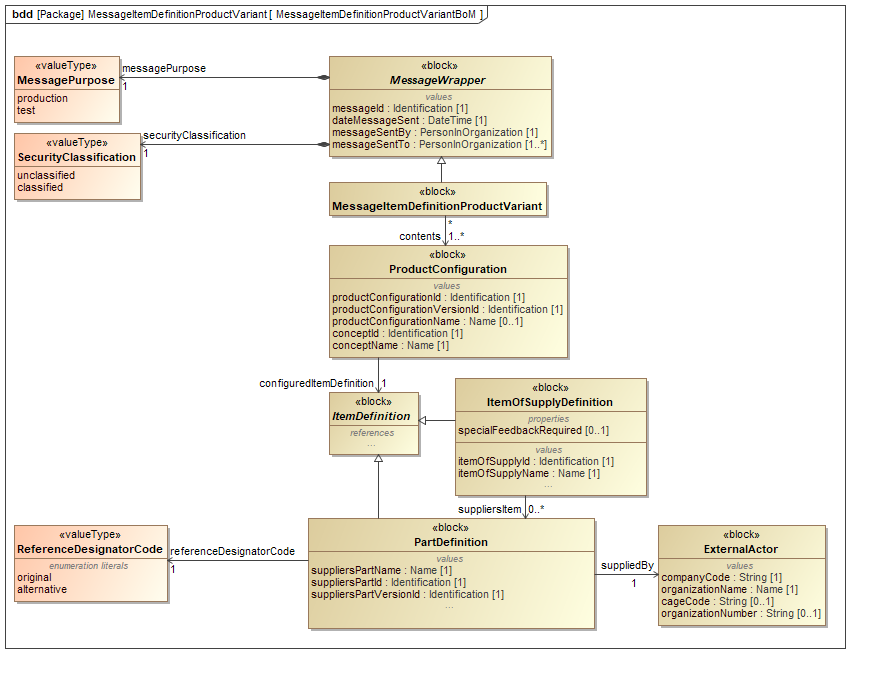

MessageItemDefinitionProductVariant
The MessageItemDefinitionProductVariant template describes how to represent a message concerning product configurations.
|
Attribute |
Description |
|---|---|
| dateMessageSent | The date time when the message is sent. |
| messageId | The identifier for the message. |
| messagePurpose | The purpose of the message. |
| messageSentBy | The organization that sends the message. |
| messageSentTo | The organization that receives the message. |
| securityClassification | The security classification for the message. |
| contents | The product configuration contained within the message. |
Table 4 -MessageItemDefinitionProductVariant

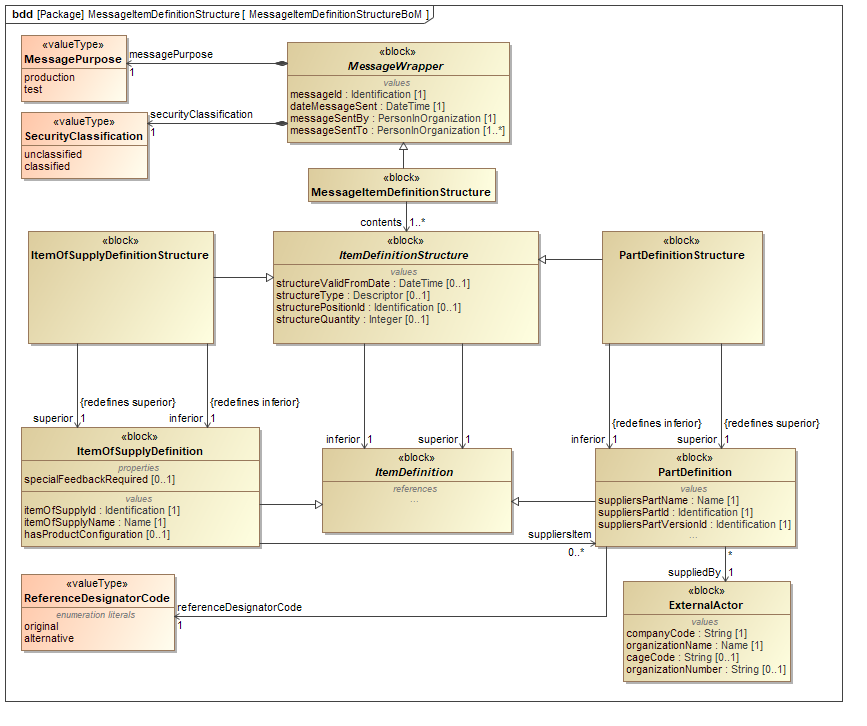

MessageItemDefinitionStructure
The MessageItemDefinitionStructure template describes how to represent a message concerning item of supply structure and part definition structures.
|
Attribute |
Description |
|---|---|
| dateMessageSent | The date time when the message is sent. |
| messageId | The identifier for the message. |
| messagePurpose | The purpose of the message. |
| messageSentBy | The organization that sends the message. |
| messageSentTo | The organization that receives the message. |
| securityClassification | The security classification for the message. |
| contents | The item definition structure contained within the message. |
Table 5 -MessageItemDefinitionStructure
PartDefinition
The PartDefinition template describes how to represent an item that is a part.
|
Attribute |
Description |
|---|---|
| document | Relationship to documents that are related to the part definition. |
| suppliedBy | Relationship to the external actor that is the supplier or manufacturer of the part. |
| suppliersPartId | The supplier's or manufacturer's identifier for the part. |
| suppliersPartName | The part name used by the supplier or manufacturer. Term 339. |
| suppliersPartVersionId | Version identifier. |
PartDefinitionStructure
The PartDefinitionStructure template describes how to represent the composition of a PartDefinition.
|
Attribute |
Description |
|---|---|
| structurePositionId | Identifier of the position in the item definition structure. |
| structureQuantity | Number of units for a particular item in next higher assembly. |
| structureType | Type of the item definition structure. |
| structureValidFromDate | Start date that the item definition structure is valid. |
| inferior | Inferior part definition in a part definition structure. |
| superior | Superior part definition in a part definition structure. |
Table 7 -PartDefinitionStructure
ProductConfiguration
The ProductConfiguration template describes how to represent a specific product variant (configuration), that physically and functionally defines the product structure, even though the physical and functional elements may be realized by different, contained Items of Supply.
|
Attribute |
Description |
|---|---|
| conceptId | ID of the product concept, e.g. "39" |
| conceptName | Name of the product concept, e.g. "Gripen Aircraft" |
| configuredItemDefinition | Relationship to the item of supply or part definition for which the configuration is valid. |
| productConfigurationId | Identification of the product configuration, eg "39E" |
| productConfigurationName | Name of product configuration (free text), e.g. "Gripen Aircraft E" |
| productConfigurationVersionId | Version of the product configuration, e.g. "5". |
