The ItemDefinitionBasicData: Business overview section provided a high level overview of the business information that can be represented by this DEX. This section provides a more detailed overview of that information. A description of how to represent this information using ISO 10303-239 PLCS is provided in ItemDefinitionBasicData: PLCS PSM Representation.

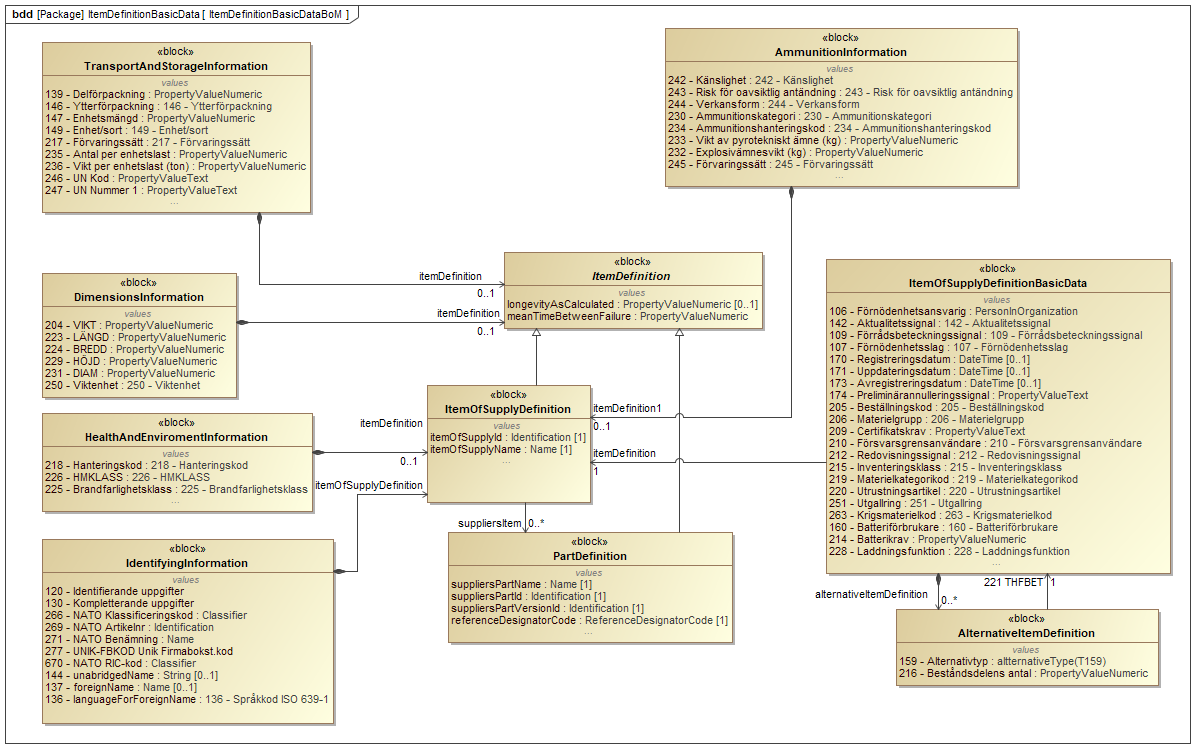

A detailed view of the information to be exchanged is provided by the SysML model in Figure 3. This shows all the information that can be exchanged by the DEX.

NOTE The information shown in the SysML Block Definition diagram in Figure 3 is intended to illustrate the type of information that can be represented by the DEX. It does not imply that all exchanges must contain all this information.

../../../../../data/contexts/SwedishDefence/dexs/ItemDefinitionBasicData/images/ItemDefinitionBasicDataBoM.png

Figure 3 - SysML Block Definition diagram representing key concepts that the DEX supports
