DEX: Physical Structure DEX - Business Information Model

The Physical Structure DEX: Business overview section provided a high level overview of the business information that can be represented by this DEX. This section provides a more detailed overview of that information. A description of how to represent this information using ISO 10303-239 PLCS is provided in Physical Structure DEX: PLCS PSM Representation.

NOTE The information shown in the SysML Block Definition diagram in Figure 3 is intended to illustrate the type of information that can be represented by the DEX. It does not imply that all exchanges must contain all this information.

NOTE The information shown in the SysML Block Definition diagram in Figure 4 is intended to illustrate the Information needed to exchange Physical Maintenance Structure data this DEX.

Model Diagrams

../../../../../data/contexts/SwedishDefence/dexs/PhysicalStructure/images/PhysicalStructureBoM.png

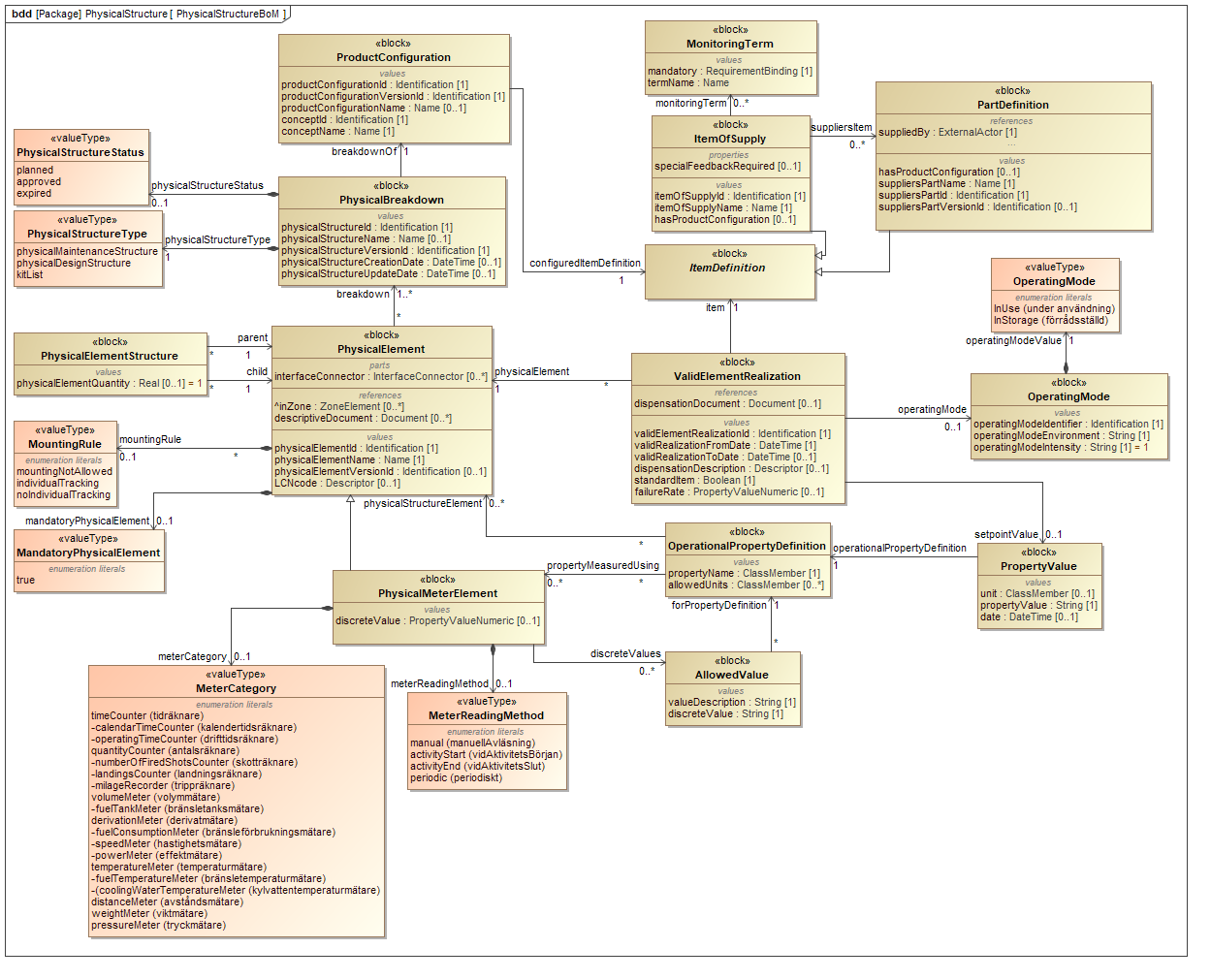

Figure 3 - SysML Block Definition diagram representing the Physical Structure BoM

../../../../../data/contexts/SwedishDefence/dexs/PhysicalStructure/images/MessagePhysicalMaintenanceStructureBoM.png

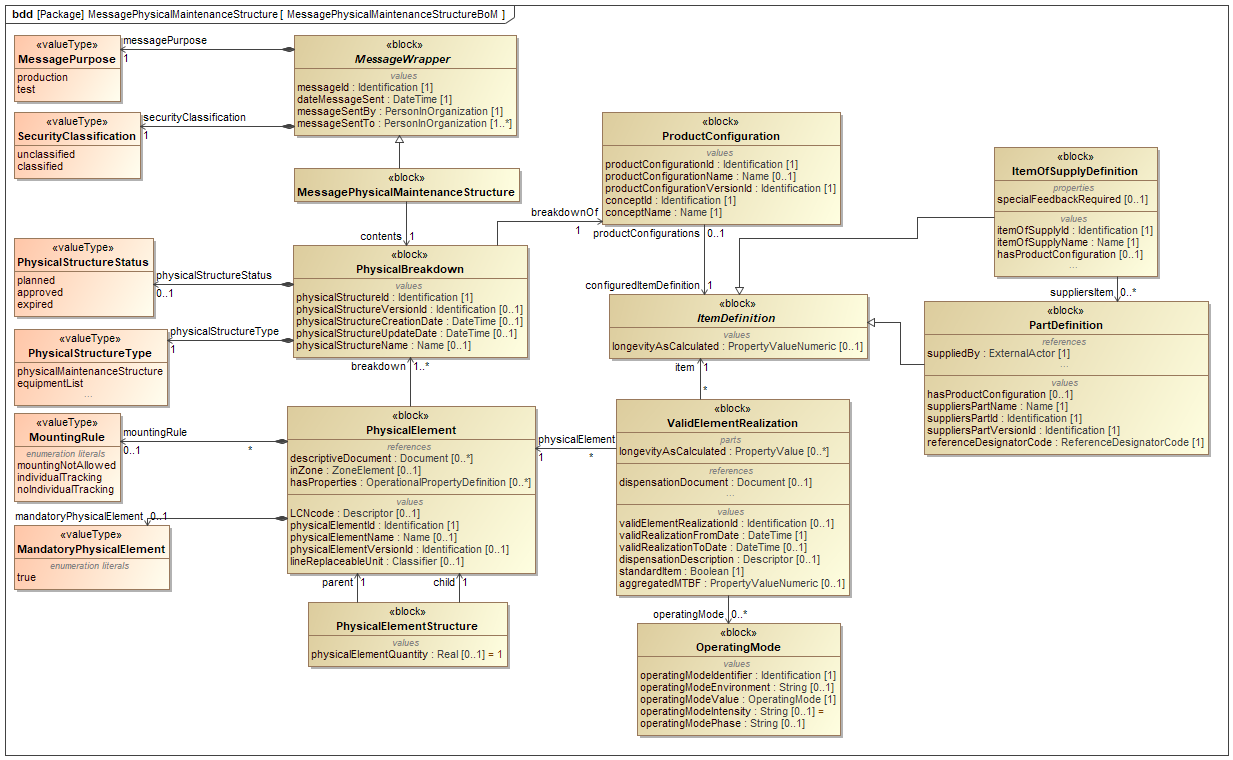

Figure 4 - SysML Block Definition diagram representing the Message Physical Maintenance Structure BoM

../../../../../data/contexts/SwedishDefence/dexs/PhysicalStructure/images/MessageMeterBoM.png

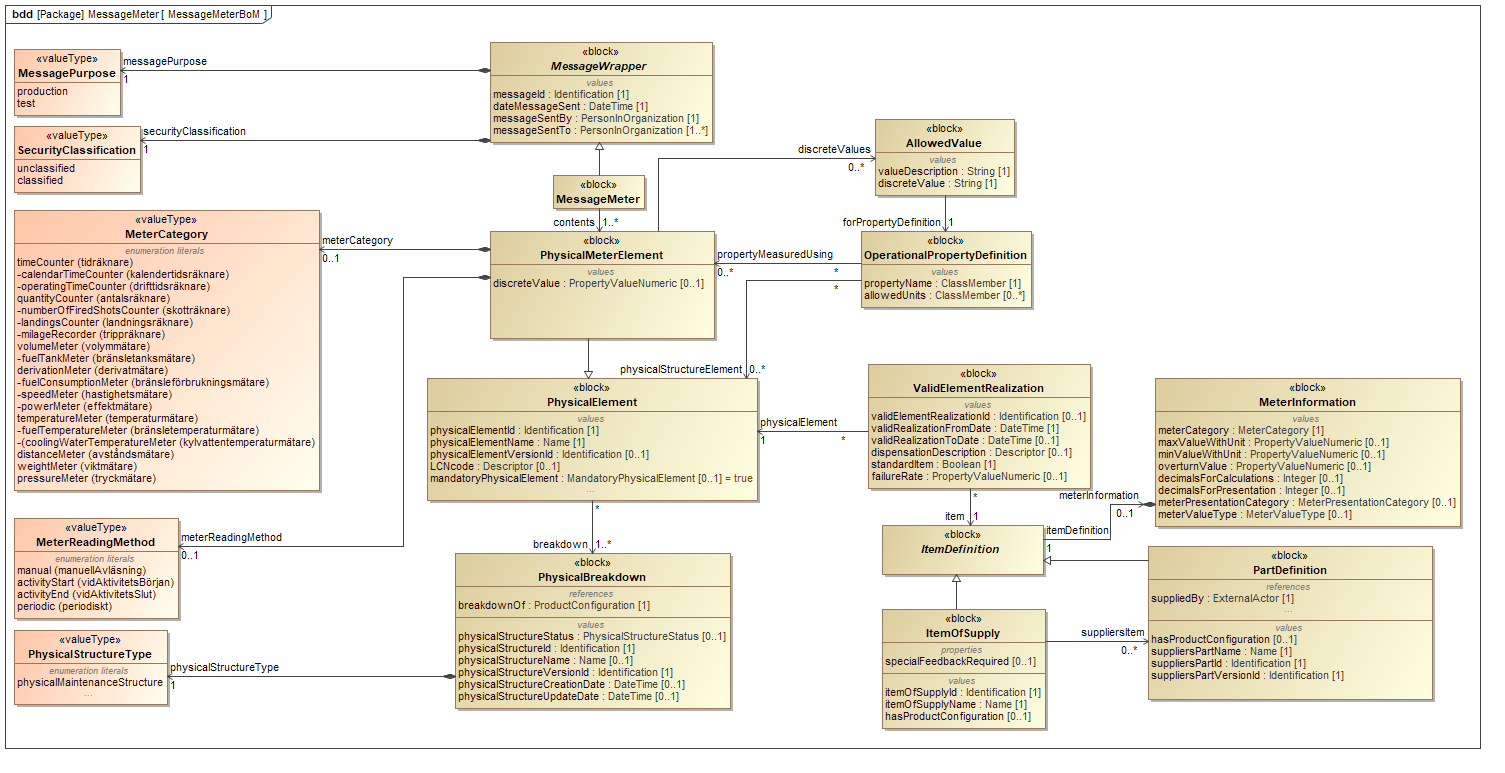

Figure 5 - SysML Block Definition diagram representing the Message Meter BoM

../../../../../data/contexts/SwedishDefence/dexs/PhysicalStructure/images/MessagePhysicalDesignStructureBoM.png

Figure 6 - SysML Block Definition diagram representing the Message Physical Design Structure BoM

../../../../../data/contexts/SwedishDefence/dexs/PhysicalStructure/images/MessageKitDefinitionBoM.png

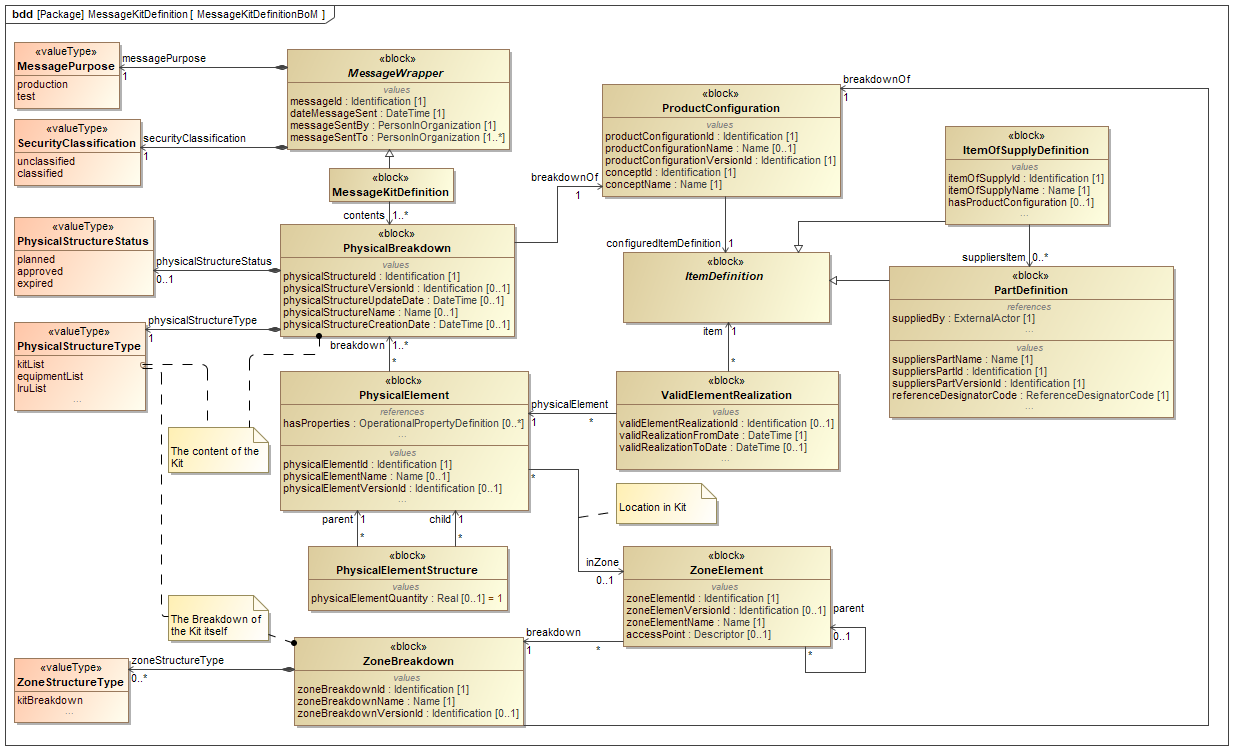

Figure 7 - SysML Block Definition diagram representing the Message Kit Definition BoM

Class Descriptions

The section describes the different classes used for Exchange according to this DEX.

AllowedValue

The AllowedValue template describes how to represent defined allowed values of an {operational property definition}, when the property values are non-numerical, e.g. colour (red, yellow, green).

Attribute	Description
discreteValue	Specific discrete value that the Meter may display, e.g. fault code.
forPropertyDefinition	Relationship to an operational property definition, that defines the property for which these values are allowed.
valueDescription	Description of the discrete value.

Table 2 -AllowedValue

ItemOfSupplyDefinition

The ItemOfSupplyDefinition template describes how to represent an item definition that is a formal item of supply for Swedish Defence, i.e. it has an identifier owned by Swedish Defence.

Attribute	Description
hasProductConfiguration	Indicates that an individual item of supply below this position may have variant product configurations.
itemOfSupplyId	Identification of the item of supply stipulated by the Swedish defence materiel administration (FMV).
itemOfSupplyName	Denomination for the item of supply stipulated by the Swedish defence materiel administration (FMV).
specialFeedbackRequired	Requires special follow-up and the use of MonitoringTerms defined.
suppliersItem	Relationship to the supplier's or manufacturer's part definition for the item of supply.

Table 3 -ItemOfSupplyDefinition

MessageKitDefinition

The MessageKitDefinition template describes how to represent a message concerning kit list structures.

Attribute	Description
dateMessageSent	The date time when the message is sent.
messageId	The identifier for the message.
messagePurpose	The purpose of the message.
messageSentBy	The organization that sends the message.
messageSentTo	The organization that receives the message.
securityClassification	The security classification for the message.
contents	The physical structure contained within the message.

Table 4 -MessageKitDefinition

MessageMeter

The MessageMeter template describes how to represent a message concerning physical meter elements.

Attribute	Description
dateMessageSent	The date time when the message is sent.
messageId	The identifier for the message.
messagePurpose	The purpose of the message.
messageSentBy	The organization that sends the message.
messageSentTo	The organization that receives the message.
securityClassification	The security classification for the message.
contents	The physical meter elements contained within the message.

Table 5 -MessageMeter

MessagePhysicalDesignStructure

The MessagePhysicalDesignStructure template describes how to represent a message concerning the composition of physical design structures.

Attribute	Description
dateMessageSent	The date time when the message is sent.
messageId	The identifier for the message.
messagePurpose	The purpose of the message.
messageSentBy	The organization that sends the message.
messageSentTo	The organization that receives the message.
securityClassification	The security classification for the message.
contents	The designed physical structures contained within the message.

Table 6 -MessagePhysicalDesignStructure

MessagePhysicalMaintenanceStructure

The MessagePhysicalMaintenanceStructure template describes how to represent a message concerning physical maintenance structure.

Attribute	Description
dateMessageSent	The date time when the message is sent.
messageId	The identifier for the message.
messagePurpose	The purpose of the message.
messageSentBy	The organization that sends the message.
messageSentTo	The organization that receives the message.
securityClassification	The security classification for the message.
contents	The maintenance physical structures contained within the message.

Table 7 -MessagePhysicalMaintenanceStructure

OperationalPropertyDefinition

The OperationalPropertyDefinition template describes how to represent an operational property definition, that will be measured and given property values later on in the operative and maintenance phases.

Attribute	Description
allowedUnits	A set of external units (OWL individuals) that may be used for the property value.
propertyName	Reference to OWL individual that provides the definition of the property.

Table 8 -OperationalPropertyDefinition

PartDefinition

The PartDefinition template describes how to represent an item that is a part.

Attribute	Description
hasProductConfiguration	Indicates that an individual item of supply below this position may have variant product configurations.
referenceDesignatorCode	TBD
suppliedBy	Relationship to the external actor that is the supplier or manufacturer of the part.
suppliersPartId	The supplier's or manufacturer's identifier for the part.
suppliersPartName	The part name used by the supplier or manufacturer. Term 339.
suppliersPartVersionId	Version identifier.

Table 9 -PartDefinition

PhysicalBreakdown

The PhysicalBreakdown template describes how to represent a structural breakdown of the product describing the physical placement of each ItemDefinition. Note that this structure may concern a product, e.g. a vehicle, but also a contained ItemDefinition with its own structure, e.g. an engine.

Attribute	Description
breakdownOf	Relationship to the Product configuration that this is a physical breakdown structure for.
physicalStructureCreationDate	Date of creation of the physical structure.
physicalStructureId	Identification of the physical structure.
physicalStructureName	Name of the physical structure
physicalStructureStatus	Indicates that the structure is planned, approved, or archived.
physicalStructureType	Type of the physical structure: physical maintenance breakdown, physical design breakdown or kit list.
physicalStructureUpdateDate	Date of modification of the physical structure.
physicalStructureVersionId	Identification of the physical structure version

Table 10 -PhysicalBreakdown

PhysicalElement

Represents a position (or a "hole") in the physical structure. The position (structural element) may have an "applicability", i.e. a list of valid ItemOfSupplies that can be used at this position.)

Attribute	Description
breakdown	Relationship to the physical structure that contains the physical structure element.
descriptiveDocument	Relationship to documents that are related to the physical element.
hasProperties	TBD
interfaceConnector	Relationship to interface connectors that a physical element consists of.
LCNcode	Logistics Support Analysis (LSA) Control Number. The LCN may represent either a functional or hardware generation breakdown/disassembly sequence of system/equipment hardware including support equipment, training equipment, and installation (connecting) hardware. Alternative identification of the physical element, unique within the physical structure.
mountingRule	Physical structure element that is classified according mounting rules.
physicalElementId	Identifies the physical element uniquely (within a physical structure).
physicalElementName	Name of the physical meter element.
physicalElementVersionId	Identifies a physical meter element version uniquely (within the physical element)

Table 11 -PhysicalElement

PhysicalElementStructure

The template PhysicalElementStructure describes the relationship between a parent and child of the physical breakdown structure.

Attribute	Description
child	Relationship to the child in the physical breakdown structure.
parent	Relationship to the parent in the physical breakdown structure.
physicalElementQuantity	Number of units for a particular item in next higher assembly.

Table 12 -PhysicalElementStructure

PhysicalMeterElement

The PhysicalMeterElement template describes how to represent a physical structure element that represents a meter, that measures specific operational properties.

Attribute	Description
breakdown	Relationship to the physical structure that contains the physical structure element.
LCNcode	Logistics Support Analysis (LSA) Control Number. The LCN may represent either a functional or hardware generation breakdown/disassembly sequence of system/equipment hardware including support equipment, training equipment, and installation (connecting) hardware. Alternative identification of the physical element, unique within the physical structure.
mandatoryPhysicalElement	Classification of the physical element as being mandatory in the structure, i.e. it has to be realized in order to use the product.
measures	The properties measured by the Physical Meter Element.
physicalElementId	Identifies the physical element uniquely (within a physical structure).
physicalElementName	Name of the physical meter element.
physicalElementVersionId	Identifies a physical meter element version uniquely (within the physical element)
discreteValues	TBD
desiredValue	TBD
isVirtual	Classification of the meter as being a virtual meter (as opposed to a real, physical meter in the product).
meterCategory	Classifies the meter by category, e.g. time counter, volume meter, distance meter.
meterReadingMethod	Classifies the meter by how it is read, e.g. manually, periodically, by activity start.

Table 13 -PhysicalMeterElement

ProductConfiguration

The ProductConfiguration template describes how to represent a specific product variant (configuration), that physically and functionally defines the product structure, even though the physical and functional elements may be realized by different, contained Items of Supply.

Attribute	Description
conceptId	ID of the product concept, e.g. "39"
conceptName	Name of the product concept, e.g. "Gripen Aircraft"
configuredItemDefinition	Relationship to the item of supply or part definition for which the configuration is valid.
productConfigurationId	Identification of the product configuration, eg "39E"
productConfigurationName	Name of product configuration (free text), e.g. "Gripen Aircraft E"
productConfigurationVersionId	Version of the product configuration, e.g. "5".

Table 14 -ProductConfiguration

ValidElementRealization

The ValidElementRealization template describes how to represent the relationship between an element in a physical structure and items of supply or part definitions that may be validly fitted as the element in question. The validity may be time limited and other constraints on validity may be documented.

Attribute	Description
aggregatedMTBF	AggregatedMTBF is used for simulation and planning. It indicates how often an ItemDefinition may break in the current location, regardless of fault mode (MTBF - Mean Time Between Failure).
item	Relationship to the item definition that is realized.
physicalElement	Relationship to the physical structure element that defines the location of the (mounted) item definition.
validElementRealizationId	The identifier of the valid element realization.
validRealizationFromDate	The data and time from which the element realization became valid.
validRealizationToDate	The data and time until which the element realization was valid.

Table 15 -ValidElementRealization
