The Task Method DEX: Business overview section provided a high level overview of the business information that can be represented by this DEX. This section provides a more detailed overview of that information. A description of how to represent this information using ISO 10303-239 PLCS is provided in Task Method DEX: PLCS PSM Representation.

NOTE The information shown in the SysML Block Definition diagram in Figure 3 is intended to illustrate the type of information that can be represented by the DEX. It does not imply that all exchanges must contain all this information.

NOTE The information shown in the SysML Block Definition diagram in Figure 4 is intended to illustrate the Information needed to exchange Task Method data using this DEX.

Model Diagrams

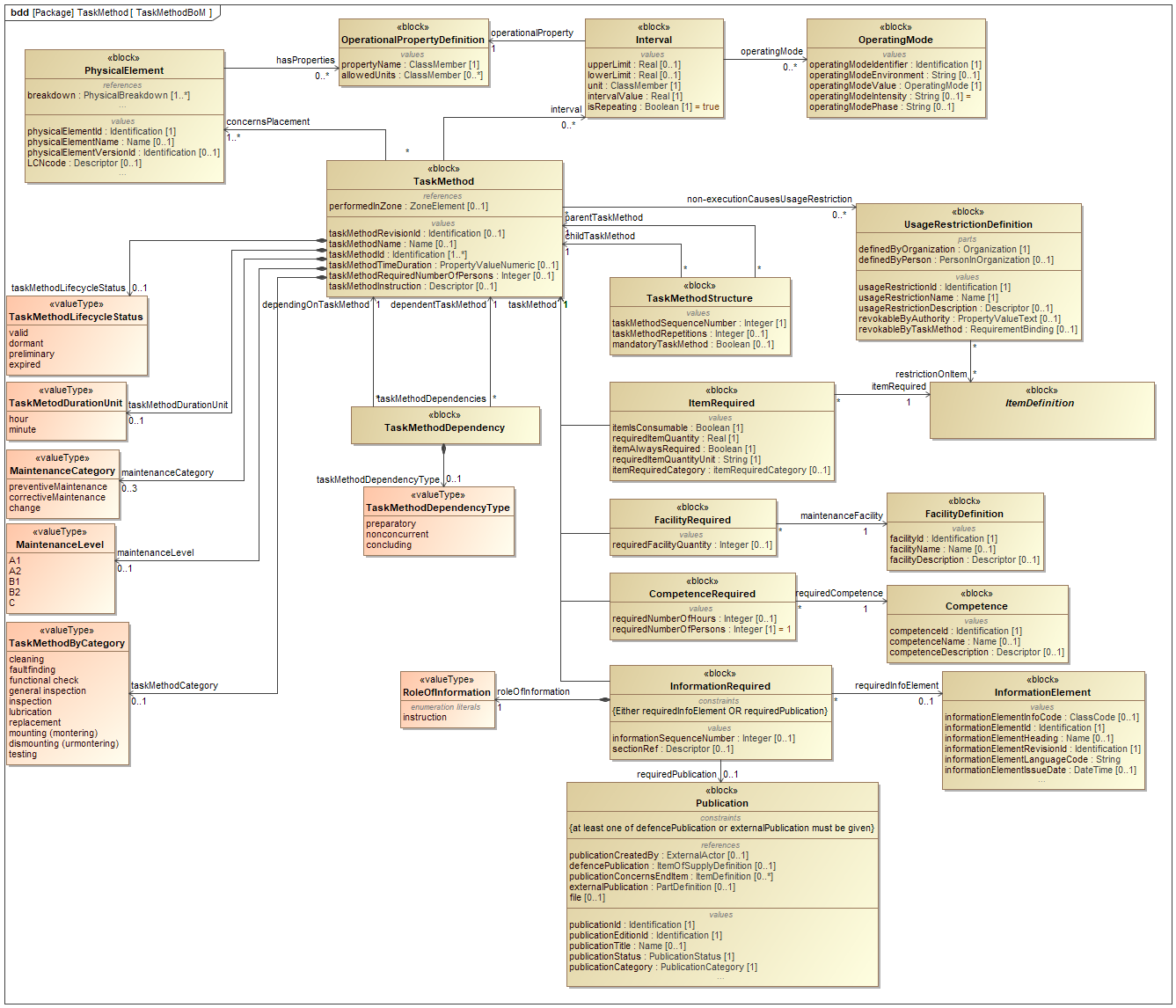

../../../../../data/contexts/SwedishDefence/dexs/TaskMethod/images/TaskMethodBoM.png

Figure 3 - SysML Block Definition diagram representing the Task Method BoM

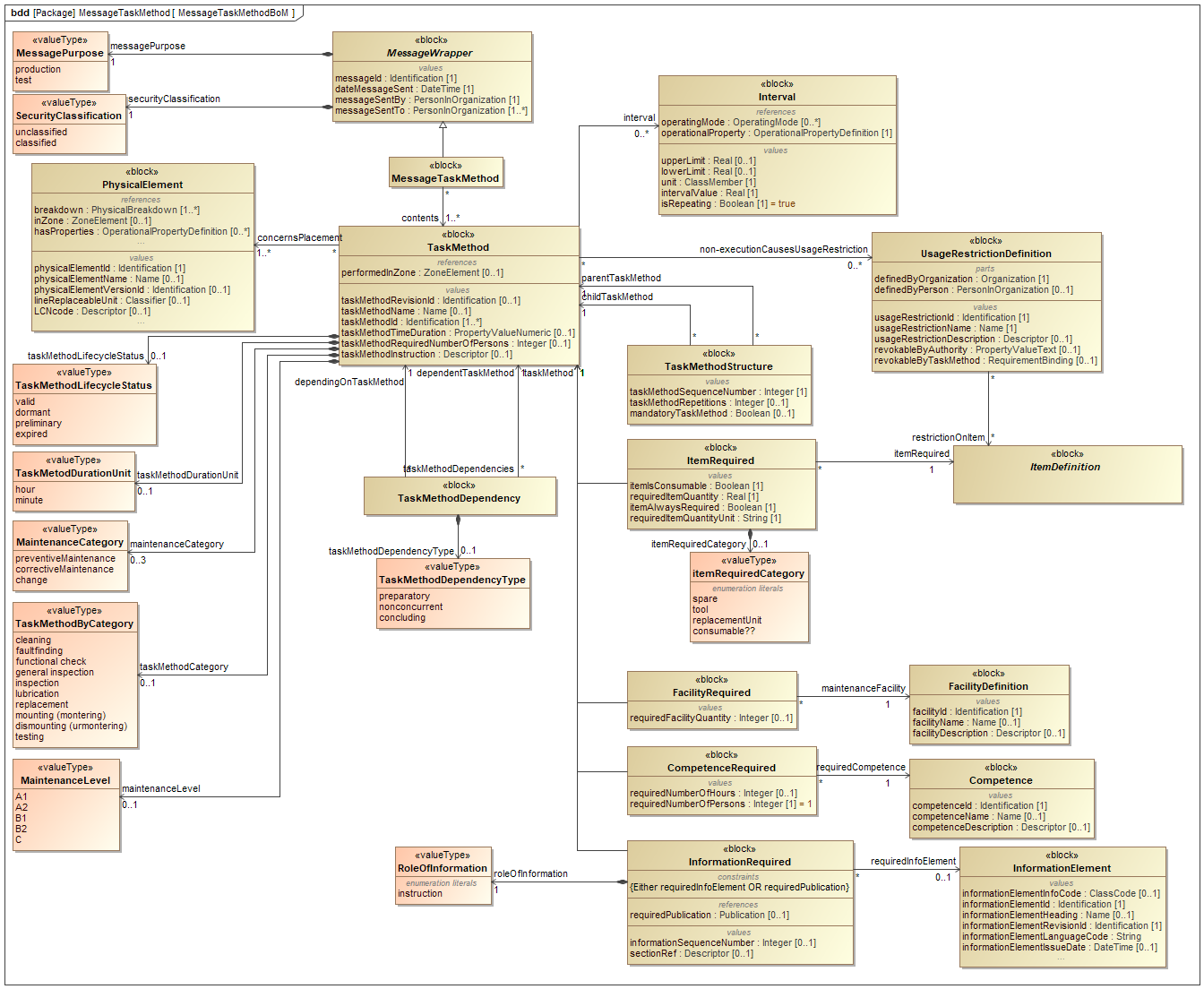

../../../../../data/contexts/SwedishDefence/dexs/TaskMethod/images/MessageTaskMethodBoM.png

Figure 4 - SysML Block Definition diagram representing the Message Task Method BoM

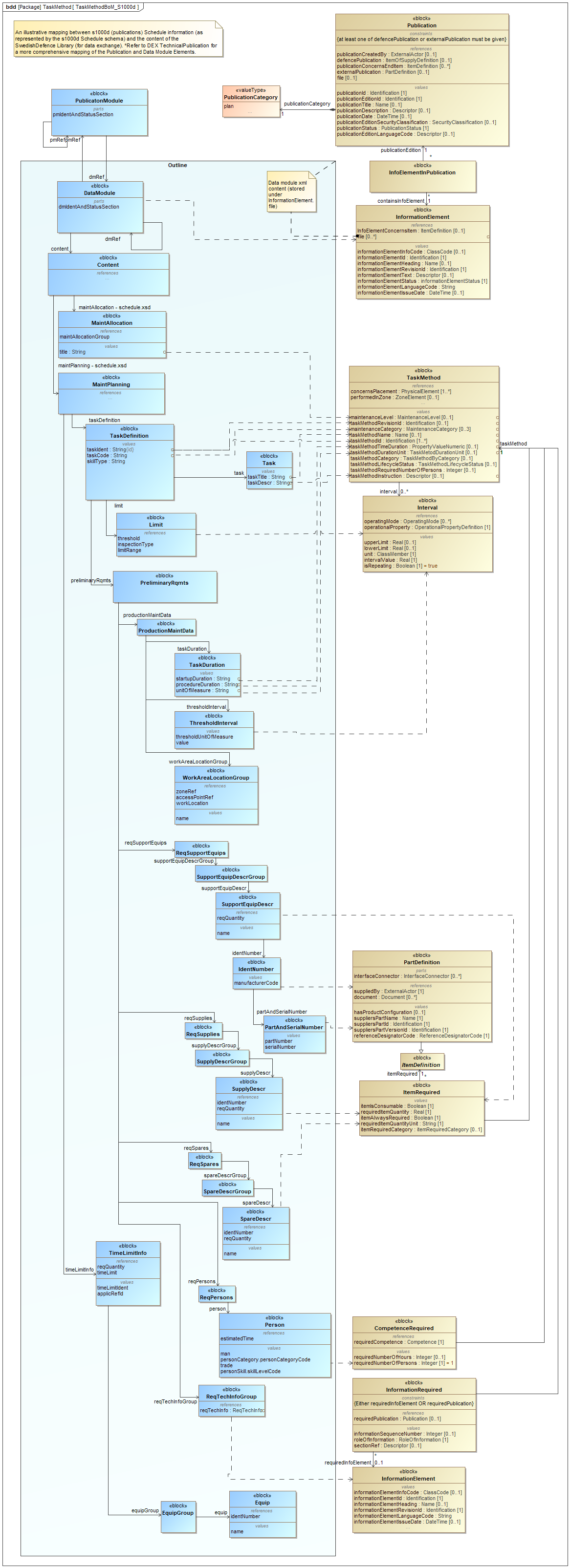

../../../../../data/contexts/SwedishDefence/dexs/TaskMethod/images/TaskMethodBoM_s1000d.png

Figure 5 - Conceptual mapping of ASD s1000d publications, containing schedule information, to the Swedish Defence DEX library and the Task Method DEX

Class Descriptions

The section describes the different classes used for Exchange according to this DEX.

Competence

The Competence template describes how to represent a personell competence that is authorized by the armed forces, e.g. electrician, tank mechanics, etc.)

Attribute	Description
competenceDescription	Description of specific competence.
competenceId	Identification of specific competence.
competenceName	Name of competence, e.g. mechanics armored vehicles, mechanics personal cars.

Table 2 -Competence

CompetenceRequired

The CompetenceRequired template describes how to represent competence needed for a specific TaskMethod.

Attribute	Description
requiredCompetence	Relationship to the competence that is required.
requiredNumberOfHours	Indicates the number of man hours needed of a specific competence.
requiredNumberOfPersons	Indicates the number of persons with a specific competence that is required.
taskMethod	Relationship to the task method in which the competence is required.

Table 3 -CompetenceRequired

FacilityDefinition

The FacilityDefinition template describes how to represent equipment, infrastructure or safety equipment required for maintenance activities. E.g. Clean room, heated garage, lifting device, engine test room.

Attribute	Description
facilityDescription	The description for the maintenance facility.
facilityId	A unique identifier for a type of maintenance facility.
facilityName	The name for the maintenance facility.

Table 4 -FacilityDefinition

FacilityRequired

The FacilityRequired template describes how to represent facility needed for a specific TaskMethod.

Attribute	Description
maintenanceFacility	Relationship to the facility definition (type) required.
requiredFacilityQuantity	Quantity
taskMethod	Relationship to the task method by which the facility is required.

Table 5 -FacilityRequired

InformationElement

The InformationElement template describes how to represent an element (part) of information within a publication, a part of the content.

Attribute	Description
infoCode	The information code for the information element.
informationElementHeading	Name of the information element.
informationElementId	Identification of specific information element.
informationElementRevisionId	Revision of the information element.

Table 6 -InformationElement

InformationRequired

The InformationRequired template describes how to represent the InformationElement needed for a specific TaskMethod (both top methods and sub-activities), e.g. maintenance instruction.

Attribute	Description
informationSequenceNumber	Indicates the ordering of information elements for display.
requiredInfoElement	Relationship to the information element that is required by the task method.
roleOfInformation	The role of the information with regards to the TaskMethod.
taskMethod	Relationship to the task method that requires the information.

Table 7 -InformationRequired

Interval

The Interval template describes how to represent the recommended interval between two consecutive executions of a specific TaskMethod for the same ItemOfSupplyIndividual.

Attribute	Description
intervalDefinition	Initialinternal or repeatinterval.
intervalValue	The interval.
lowerLimit	The lowest value of the interval. Use the intervalValue if unknown.
operatingMode	The OperatingMode for which the interval is valid.
operationalProperty	Reference to the operational property definition for the interval.
unit	The external unit (OWL individual) used to measure the interval
upperLimit	The maximum value of the initial interval. Use the intervalValue if unknown.

Table 8 -Interval

ItemRequired

The ItemRequired template describes how to represent the need for a resource (an item of supply) in a task method. The item required may respresent a consumable resource or a resource that can be used several times such as a tool.

Attribute	Description
itemAlwaysRequired	Indicates whether the item is always required.
itemIsConsumable	Indicates whether the item is a consumable item.
itemRequired	The definition of the required item.
requiredItemQuantity	The quantity of the required item.
requiredItemQuantityUnit	The external unit (OWL individual) used to measure the quantity of the required item.
taskMethod	Relationship to the task method that requires the item.

Table 9 -ItemRequired

MessageTaskMethod

The MessageTaskMethod template describes how to represent a message concerning task methods.

Attribute	Description
dateMessageSent	The date time when the message is sent.
messageId	The identifier for the message.
messagePurpose	The purpose of the message.
messageSentBy	The organization that sends the message.
messageSentTo	The organization that receives the message.
securityClassification	The security classification for the message.
contents	The task methods contained within the message.

Table 10 -MessageTaskMethod

PhysicalElement

Represents a position (or a "hole") in the physical structure. The position (structural element) may have an "applicability", i.e. a list of valid ItemOfSupplies that can be used at this position.

Attribute	Description
breakdown	Relationship to the physical structure that contains the physical structure element.
LCNcode	Logistics Support Analysis (LSA) Control Number. The LCN may represent either a functional or hardware generation breakdown/disassembly sequence of system/equipment hardware including support equipment, training equipment, and installation (connecting) hardware. Alternative identification of the physical element, unique within the physical structure.
physicalElementId	Identifies the physical element uniquely (within a physical structure).
physicalElementName	Name of the physical meter element.
physicalElementVersionId	Identifies a physical meter element version uniquely (within the physical element)

Table 11 -PhysicalElement

TaskMethod

The TaskMethod template describes how to represent a generic description of how to perform an activity (TaskInstance), including the estimated duration, competence requirements and needs for tools.

Attribute	Description
concernsPlacement	The Physical Element for which the TaskMethod is valid.
interval	Relationship to an interval that is recommended to the task method to be executed.
maintenanceCategory	Classification of the task method according to the maintenance category of the task method, e.g. change, corrective maintenance, preventive maintenance.
maintenanceLevel	Recommended maintenance level for the task method.
non-executionCausesUsageRestriction	Relationship to a usage restriction definition that is recommended to be imposed on an item of supply individual if the task method is not executed according to its intervals and maintenance plan.
taskMethodCategory	Classification of the task method according to category, e.g. replacement, mounting, dismounting, inspection, repair.
taskMethodDurationUnit	The time units used to record the duration of the task method.
taskMethodId	Identification of task method.
taskMethodInstruction	The description of how to perform the work, if this is not specified using Template Information Required.
taskMethodLifecycleStatus	Life cycle status of the task method.
taskMethodName	Name of task method in free text.
taskMethodRequiredNumberOfPersons	Indicates the number of persons required for the execution of the (a specific) task.
taskMethodRevisionId	The revision or version of the task method.
taskMethodTimeDuration	Estimated duration for the task method.

Table 12 -TaskMethod

TaskMethodDependency

The TaskMethodDependency template describes how to represent dependencies between different TaskMethods (action types). The dependency is categorized as e.g. excluding, performed simultaneously, including, conflicting (ie they can not be performed simultaneously), etc.

Attribute	Description
dependentTaskMethod	The task method which depends on a task method.
dependingOnTaskMethod	SE: beroendeFrån
taskMethodDependencyType	The type of dependency between task methods.

Table 13 -TaskMethodDependency

TaskMethodStructure

The TaskMethodStructure template describes how to representa hierarchical breakdown structure of TaskMethods, in arbitrary levels.

Attribute	Description
childTaskMethod	The child task method in a structure.
mandatoryTaskMethod	An indicator of whether the task method is mandatory.
parentTaskMethod	The parent task method in a structure.
taskMethodRepetitions	Integer that indicates how many times the task method should be repeated.
taskMethodSequenceNumber	Number that indicates the ordering of task methods within the task method structure.

Table 14 -TaskMethodStructure

UsageRestrictionDefinition

The UsageRestrictionDefinition template describes how to represent a pre-defined restriction on product usage, such as "immobilisation", e.g. as a result of neglected maintenance tasks.

Attribute	Description
definedByOrganization	Relationship to the organization that defines the usage restriction definition.
definedByPerson	Relationship to the person that defines the usage restriction definition.
restrictionOnItem	Relationship to the item of supply for which the usage restriction definition is defined.
revokableByAuthority	Authority that may annul the restriction, e.g. inspector.
revokableByTaskMethod	Classification of usage restriction definition indicating that it may be automatically revoked by the execution of a task method.
usageRestrictionDescription	Description of the restriction.
usageRestrictionId	Identification of the usage restriction definition.
usageRestrictionName	The name of the restriction.

Table 15 -UsageRestrictionDefinition
