The following sections provide a detailed description on how to represent a ZoneStructure DEX using the PLCS PSM.

The information that can be exchanged by the ZoneStructure DEX has been summarised in the Business Information Requirements section.

NOTE    An explanation of a template and its specification is provided in the Template overview
Message Zone Structure
../../../../../data/contexts/SwedishDefence/dexs/ZoneStructure/images/MessageZoneStructureDEXPlcsRep.png

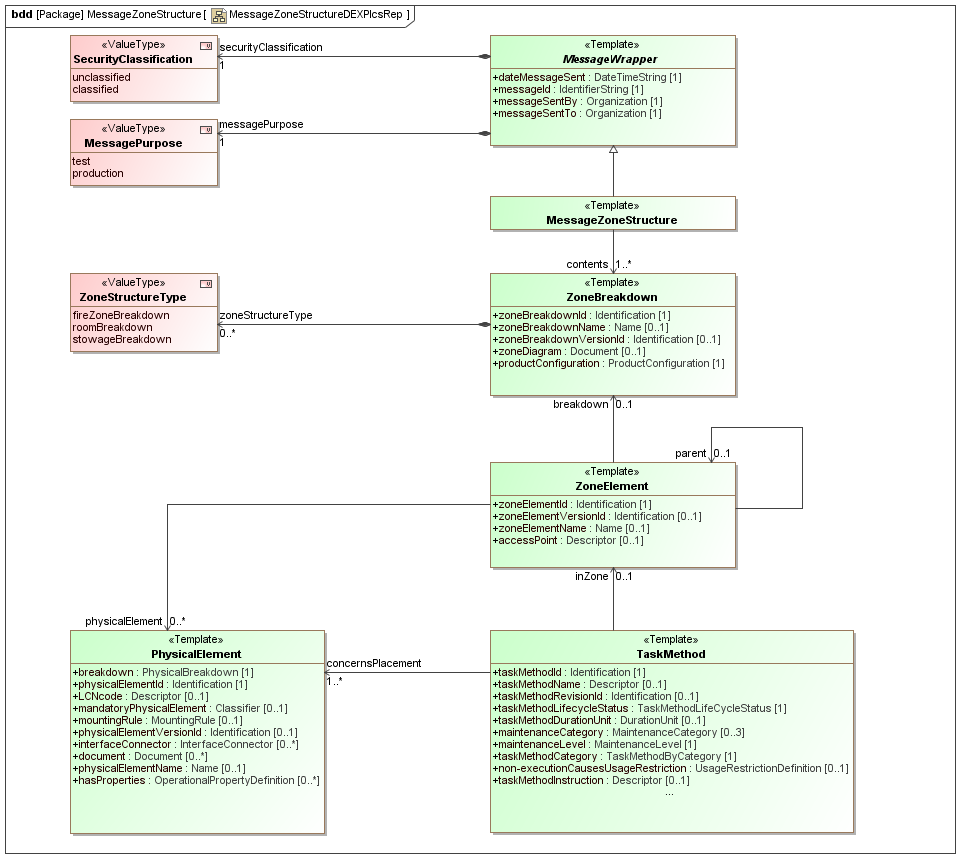

Figure 4 -  SysML Block Definition diagram representing the Message Zone Structure
