The following section describes how to set up a Context SysML index using MagicDraw 17.0 SP4.

Ensure the MagicDraw environment is set up for working on PLCSlib.

• The alias.properties file patched for working with PLCSlib located under plcslib\etc\MagicDraw has been copied to the data folder for your MagicDraw installation.
  NOTE    This does require administrative permissions on Windows systems.
• The path variable PLCSlib.data has been set to plcslib\data. If not follow the procedure:
  1. open MagicDraw
  2. goto Options -> Environment
  3. select Path Variables
  4. select Add
  5. set the name PLCSlib.data
  6. set the value to your local path to plcslib\data
  7. select OK
  8. select OK
• MagicDraw has been set to save UUID's. If not follow the procedure:
  1. open MagicDraw
  2. goto Options -> Environment
  3. select General
  4. expand Save/Load
  5. set Save UUID to true
  6. select OK
• In order to improve the performance of MagicDraw when loading a large number of templates, it is recommended that the tool is set such that diagrams are not automatically loaded:
  1. open MagicDraw
  2. goto Options -> Environment
  3. select General
  4. expand Save/Load
  5. set Diagrams load mode to Do not load diagrams
• In order to make it easier to select PLCSlib components from add the PLCSlib directories to the Global Modules Path:
  1. open MagicDraw
  2. goto Options -> Environment
  3. select General
  4. expand Save/Load
  5. select Global Modules Pathand add the paths. It is recommended to add the path to:
     • PLCS PSM: plcslib\data\PLCS\psm_model
     • PLCS OASIS Templates: plcslib\data\contexts\OASIS\templates
     • The path to the templates in the context you are developing.

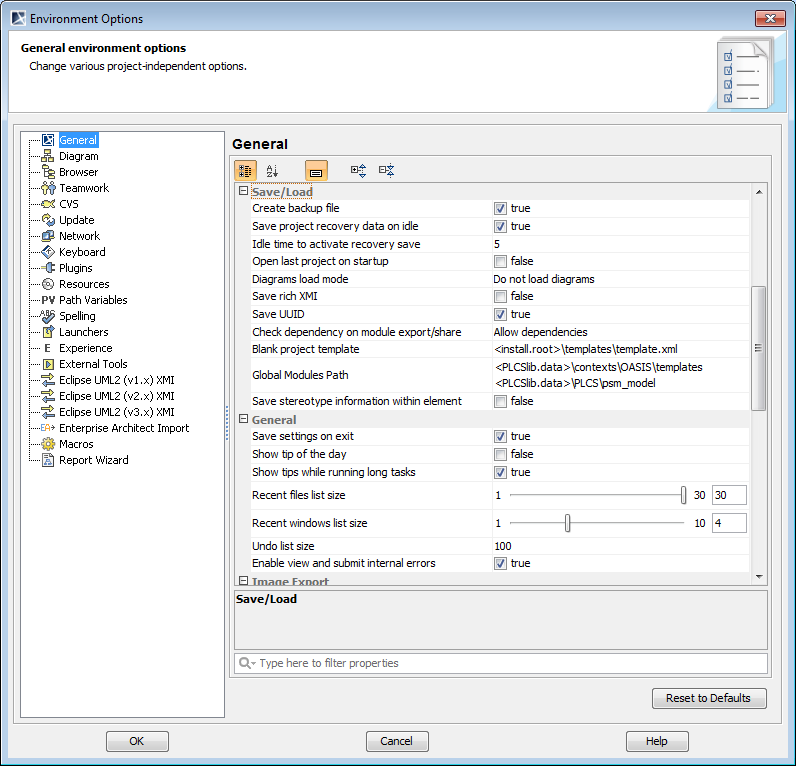

The MagicDraw Environment settings should be as shown in Figure 1.

The following stages should be followed in order to use MagicDraw to create a SysML index for the Context:

1. Create Index Project
   • Launch MagicDraw 17 and select File -> New Project...
   • Select "SysML project" under Systems Engineering as the project type.
   • Set the name of the project to be index
   • Set the project location to plcslib\data\contexts\<<Context>>\dvlp\
   NOTE    MagicDraw defaults the file type to be .mdzip, we will have to change this in a later step.
2. Create package for Context
   Add a new package for the Context you are to create.
   Under Containment tab right click on Data and select New Element -> Package.
   Name the package the same as the Context.

3. Create package for Context's DEXs
   Add a new package for the DEXs in Context you are to create.
   Under Containment tab right click on Data\<<Context>> and select New Element -> Package.
   Name the package "DEXs".

4. Create package for Context's Templates
   Add a new package for the templates in Context you are to create.
   Under Containment tab right click on Data\<<Context>> and select New Element -> Package.
   Name the package "Templates".

5. Use PLCS PSM model
   "Use" the PLCS PSM by selecting File->Use Module, selecting "From file system" and browsing to plcslib\data\PLCS\psm_model\dvlp\plcs_psm_module.mdxml.
   Make sure that you set "Module Accessibility" as "Read-only".
   When you press finish you should be offered the opportunity to use Path variables.
   Select the path variable form and press "Use Selected".

6. Use PLCS SysML profile
   Set the "index" to use the PLCS profile by selecting File->Use Module, selecting "From file system" and browsing to plcslib\data\contexts\dvlp\PLCS-profile.mdxml.
   Make sure that you set "Module Accessibility" as "Read-only".
   When you press finish you should be offered the opportunity to use Path variables.
   Select the path variable form and press "Use Selected".

7. Use PLCS Style
   Set the "index" and all modules developed from this to use the PLCS style by selecting Options->Project, selecting "Symbols properties styles". Select "Import" browsing to plcslib\data\contexts\dvlp\OASIS PLCS style.stl.
   Select "Open".
   Select the "OASIS PLCS Style" and select "Make Default".
   Select "OK".

8. Save the project
   Save the project to the require .mdxml format, as follows:
   • Select File -> Save Project As...
   • Select "MagicDraw File Format (.mdxml)" under Files or Type.
   • Click "Save".

9. Delete the .mdzip file Once the index.mdxml file has been created, delete the index.mdzip as it is a duplicate and MagicDraw will automatically open the .mdzip file.
10. Close the project.

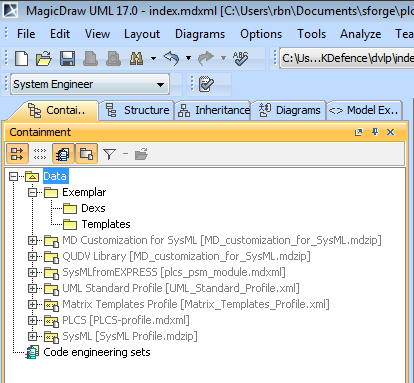

Once the above has been completed the containment tab of MagicDraw should look as shown in Figure 2
