The Item of Supply Individual: Business overview section provided a high level overview of the business information that can be represented by this DEX. This section provides a more detailed overview of that information. A description of how to represent this information using ISO 10303-239 PLCS is provided in Item of Supply Individual: PLCS PSM Representation.
The section describes the different classes used for Exchange according to this DEX.
ExternalActor
The ExternalActor template describes how to represent a third-party organization.
|
Attribute |
Description |
|---|---|
| cageCode | Commercial and Government Entity Code, the NATO correspondence to Swedish Company Letter-codes. Cage codes should be used from 2008. CAGE-kod motsvarande NMCRL:s NCAGE-kod, utvisande leverantörskod, använt i NATO-CD NMCRL för kodifiering av leverantörer och referenser till materieldata lagrade för dessa leverantörer. Termbet. CAGEKOD, Termnr. 713. |
| companyCode | Identification owned by the Swedish Defence for an organization that has delivered drawings or parts to the Swedish Defence. Referens till vilket ritningsnummersystem (vilken FBKOD) som aktuell firmas förnödenhetsdata skall registreras under. Omfattar pos 1-5 i Referensbeteckningsfältet (= Ursprungsbeteckning, Alternativ beteckning). Termbet. FBKOD, Termnr. 700 |
| organizationName | The name of the delivering organization. Oförkortat namn på aktuell firma. Termbet. FANAMN, Termnr. 709. |
| organizationNumber | The identifying number for the delivering organization. |
IndividualCertificate
The IndividualCertificate template describes how to represent a specific certificate that an ItemIndividual holds.
|
Attribute |
Description |
|---|---|
| certifiedItem | Relationship to the item of supply individual that has been certified |
| individualCertificateEndDate | End date of certification. |
| individualCertificateId | The Identifier of the certification. |
| individualCertificateName | Name of certification. |
| individualCertificateStartDate | Start date of certification. |
Table 3 -IndividualCertificate
InstalledSoftware
The InstalledSoftware template describes installation of specific {software} in a specific {item of supply individual].
|
Attribute |
Description |
|---|---|
| installationDate | Date of installation. |
| installedIn | Relationship to the item of supply individual in which the software is installed |
| software | Relationship to the software installed |
ItemOfSupplyDefinition
The ItemOfSupplyDefinition template describes how to represent an item definition that is a formal item of supply for the Swedish Defence, i.e. it has an identifier owned by the Swedish Defence.
|
Attribute |
Description |
|---|---|
| itemOfSupplyId | Identification of the item of supply stipulated by the Swedish defence materiel administration (FMV). |
| itemOfSupplyName | Denomination for the item of supply stipulated by the Swedish defence materiel administration (FMV). |
| suppliersItem | Relationship to the supplier's or manufacturer's part definition for the item of supply. |
Table 5 -ItemOfSupplyDefinition

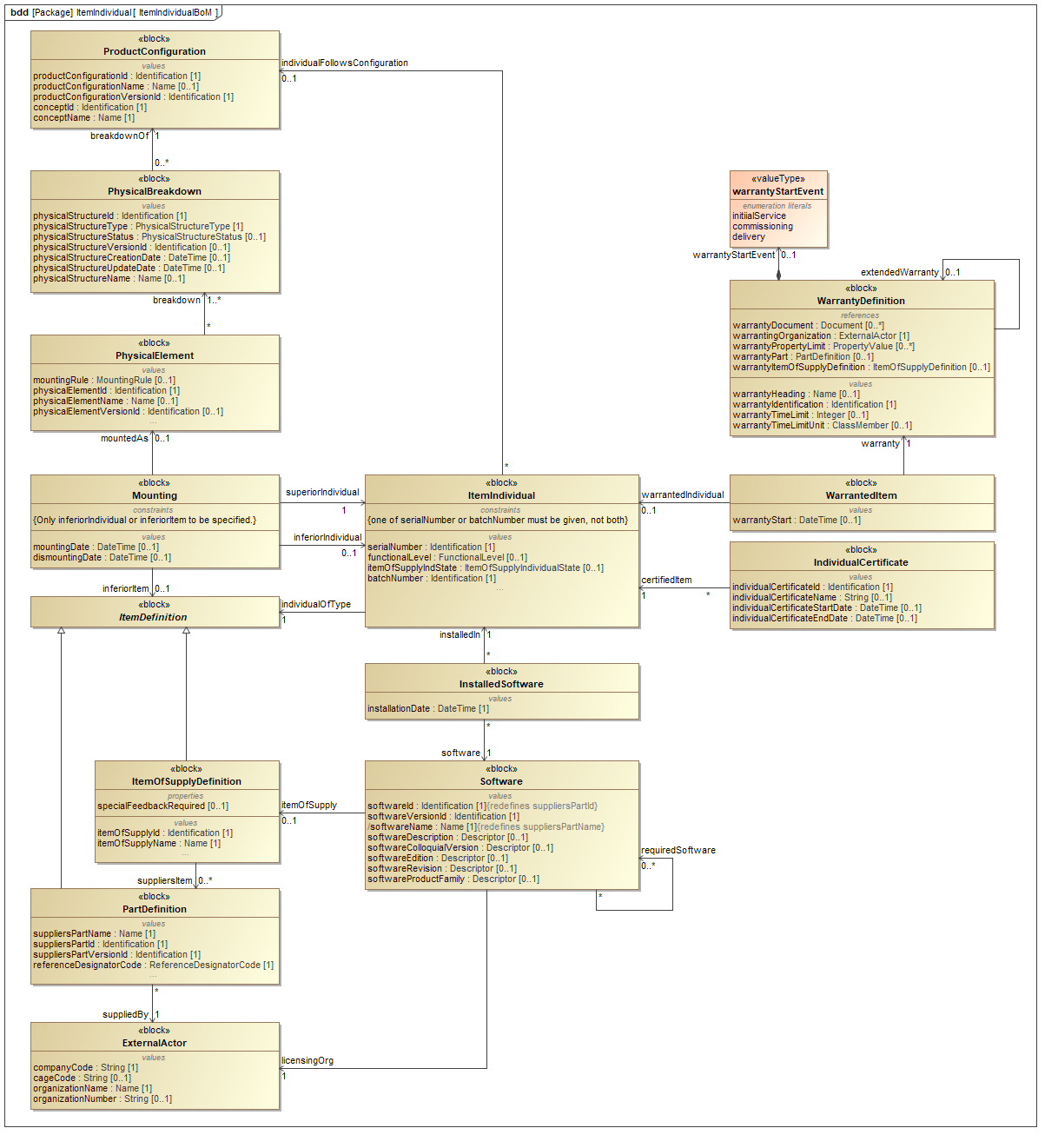

ItemIndividual
The ItemIndividual template describes how to represent a specific individual supply item, that is affected by maintenance tasks etc. An ItemIndividual can be both the top supply item, or a contained component that is managed individually. ItemIndividual is identified by e.g. serial number or registration number (for vehicles), etc.
|
Attribute |
Description |
|---|---|
| batchNumber | Product as individual identification code that identifies a product as individual as part of a batch, or lot. |
| functionalLevel | Functional level for the item of supply individual. |
| individualFollowsConfiguration | Relationship to the product configuration that governs the individual. |
| individualOfType | Relationship to the item definition that was used when the item of supply individual was created or modified. |
| itemOfSupplyIndState | State of the item of supply individual. |
| serialNumber | Product as individual identification code that identifies a product as individual in a local scope, e.g. within a company or in a battalion. |
MessageItemIndividual

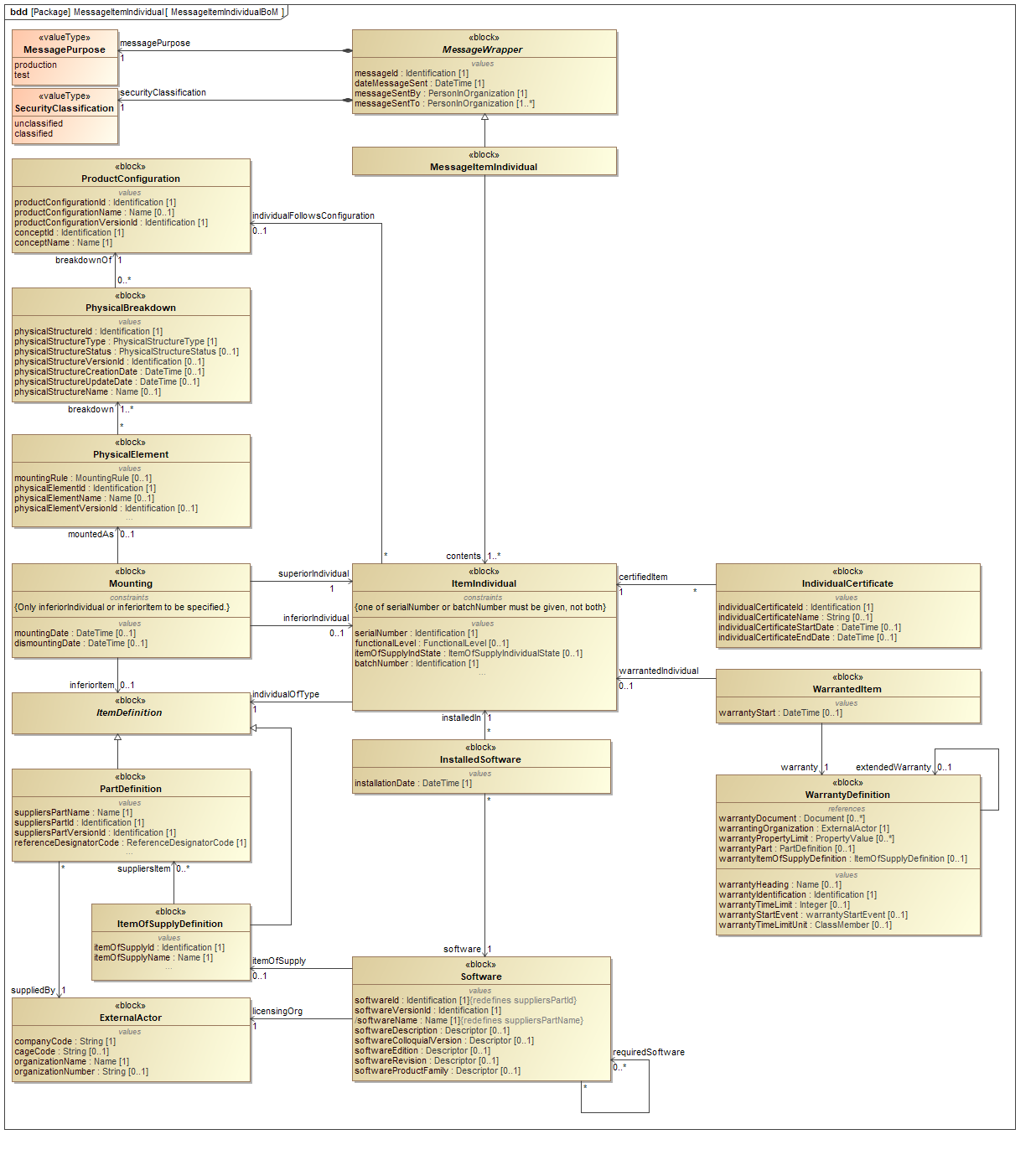

The MessageItemIndividual template describes how to represent a message concerning individual items of supply.
|
Attribute |
Description |
|---|---|
| dateMessageSent | The date time when the message is sent. |
| messageId | The identifier for the message. |
| messagePurpose | The purpose of the message. |
| messageSentBy | The organization that sends the message. |
| messageSentTo | The organization that receives the message. |
| securityClassification | The security classification for the message. |
| contents | The individual item of supplies contained within the message. |
Table 7 -MessageItemIndividual
Mounting
The Mounting template describes how to represent the installation or mounting of an ItemDefinition in an ItemIndividual. Note that the mounted ItemDefinition may be an individual or a type.
|
Attribute |
Description |
|---|---|
| dismountingDate | Date of dismounting |
| inferiorIndividual | Relationship to the item of supply individual that is being mounted. |
| inferiorItem | Relationship to the item definition that is being mounted. |
| mountedAs | Relationship to the physical structure element that represents the inferior individual or inferior item |
| mountingDate | Date of mounting |
| superiorIndividual | Relationship to the item of supply individual in which the item of supply individual or item definition has been mounted |
PartDefinition
The PartDefinition template describes how to represent an item that is a part.
|
Attribute |
Description |
|---|---|
| referenceDesignatorCode | undefined |
| suppliedBy | Relationship to the external actor that is the supplier or manufacturer of the part. |
| suppliersPartId | The supplier's or manufacturer's identifier for the part. |
| suppliersPartName | The part name used by the supplier or manufacturer. Term 339. |
| suppliersPartVersionId | Version identifier. |
PhysicalBreakdown
The PhysicalBreakdown template describes how to represent a structural breakdown of the product describing the physical placement of each ItemDefinition.
|
Attribute |
Description |
|---|---|
| breakdownOf | Relationship to the Product configuration that this is a physical breakdown structure for. |
| physicalStructureCreationDate | Date of creation of the physical structure. |
| physicalStructureId | Identification of the physical structure. |
| physicalStructureName | Name of the physical structure. |
| physicalStructureStatus | Indicates that the structure is planned, approved, or archived. |
| physicalStructureType | Type of the physical structure: physical maintenance breakdown, physical design breakdown or kit list. |
| physicalStructureUpdateDate | Date of modification of the physical structure. |
| physicalStructureVersionId | Identification of the physical structure version |
PhysicalElement
Represents a position (or a "hole") in the physical structure. The position (structural element) may have an "applicability", i.e. a list of valid ItemOfSupplies that can be used at this position.)
|
Attribute |
Description |
|---|---|
| breakdown | Relationship to the physical structure that contains the physical structure element. |
| mountingRule | Physical structure element that is classified according mounting rules. |
| physicalElementId | Identifies the physical element uniquely (within a physical structure). |
| physicalElementName | Name of the physical meter element. |
| physicalElementVersionId | Identifies a physical meter element version uniquely (within the physical element) |
ProductConfiguration
The ProductConfiguration template describes how to represent a specific product variant (configuration), that physically and functionally defines the product structure, even though the physical and functional elements may be realized by different, contained Items of Supply.
|
Attribute |
Description |
|---|---|
| conceptId | ID of the product concept, e.g. "39" |
| conceptName | Name of the product concept, e.g. "Gripen Aircraft" |
| productConfigurationId | Identification of the product configuration, eg "39E" |
| productConfigurationName | Name of product configuration (free text), e.g. "Gripen Aircraft E" |
| productConfigurationVersionId | Version of the product configuration, e.g. "5". |
Table 12 -ProductConfiguration
Software
The Software template describes how to represent an approved software (or software version) that may be installed in an item of supply individual (partly based on the ISO-IEC 19770-2 Software Identification Tags standard).
|
Attribute |
Description |
|---|---|
| itemOfSupply | Corresponding ItemOfSupply. |
| licensingOrg | Relationship to the external actor that represents the organization that is licensing the use of the software. |
| requiredSoftware | Software that is required to work properly. |
| softwareColloquialVersion | The informal or colloquial version of the product (i.e. 2013). Note that this version may be the same through multiple releases of a software product where the version specified in SoftwareEntity is much more specific and will change for each software release. |
| softwareDescription | A longer, detailed description of the software. |
| softwareEdition | The variation of the product (Extended, Enterprise, Professional, Standard etc). |
| softwareId | A unique identifier of the software. |
| softwareName | The base name of the product (e.g. Office). |
| softwareProductFamily | The overall product family this software belongs to. Product family is not used to identify that a product is part of a suite, but is instead used when a set of products that are all related may be installed on multiple different devices. For example, an Enterprise backup system may consist of a backup server, multiple different backup systems that support mail servers, databases and ERP systems as well as individual software items that backup client devices. In this case all software titles that are part of the backup system would have the same productFamily name so they can be grouped together in reporting systems. |
| softwareRevision | The informal or colloquial representation of the sub-version of the given product (i.e., SP1, R2, RC1, Beta 2, etc). Note that the SoftwareIdentity.version will provide very exact version details. |
| softwareVersionId | Underlying development version for the software. |
WarrantedItem
undefined
|
Attribute |
Description |
|---|---|
| warrantedIndividual | The individual that the Warranty Definition is effective for. |
| warranty | The actual warranty that follows the individual. |
| warrantyStart | The date when the warrantyStartEvent in the warranty took place for the warrentedIndividual or if warrantyStartEvent is not specified then the agreed date of commencement. |
WarrantyDefinition
undefined
|
Attribute |
Description |
|---|---|
| extendedWarranty | A relationsship to a warranty that this warranty extends (if applicable). |
| warrantyDocument | References to documents that support the Warrant Definition. For example the Warranty itself. |
| warrantyHeading | Name of the Warranty. |
| warrantyIdentification | Identification of the Warranty. |
| warrantyItemOfSupplyDefinition | Reference to an Item Of Supply that is subject to Warranty. |
| warrantingOrganization | The organization that has issued the warranty. |
| warrantyPart | Reference to a part that is subject to Warranty. |
| warrantyPropertyLimit | The limit of the warranty if operational property based (e.g.operating hours). |
| warrantyStartEvent | The event that causes the warranty to become effective. |
| warrantyTimeLimit | The warranty time. |
| warrantyTimeLimitUnit | The unit of the time limit (month, or year). |
